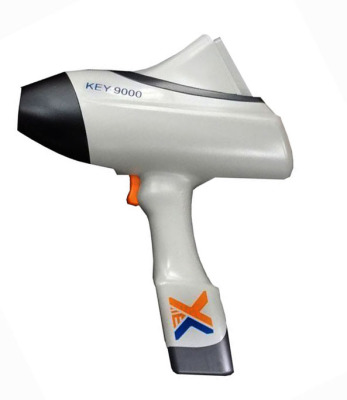

KEY9000 portable spectrum analyzer
Instrument Performance and Configuration
Analysis Range 1ppm to 99.99%
Accuracy≤ 0.05%
Sample Form Solid, powder, liquid
X-Ray Tube Voltage 0KV ~ 40KV
High Voltage Power Supply 0 ~ 40KV
X-Ray Tube Current 0μA ~ 100μA
FiltersSelectable customized switches
Detector TypeSi-pin
Resolution145 ± 5eV
Multi-channel Analyzer DMCP
Test Time30sec ~ 100sec
Analysis Range All the elements from sodium (Na) to uranium (U)
Analysis Software KEY-FP qualitative and quantitative analysis software
External Dimensions 220 * 300 * 80 (mm)
Instrument Weight 1.58Kg (With battery)
Instruments Environmental Requirements
Ambient Temperature -20 ° C ~ 55 ° C
Relative Humidity <90%
