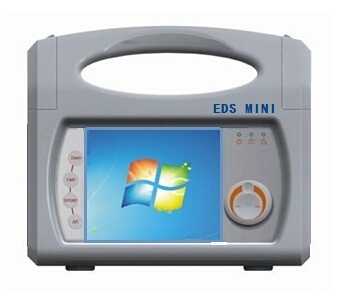

EDS portable noble metal analyzer
Product features:
1, compact design, portable, mobile various styles
2, the instrument is easy to use, only need to press the button, immediately to obtain product components
3, the analysis results in just a few seconds, it can obtain the precious metal products chemical composition and purity of noble metals and accurate
4, through computer software, can obtain the inspection reports quickly and easily
5, portable can detect ultra large, not the size limit sample
6, the product uses the built-in X ray system, to go with lead protection shell
7, only a minimal amount of training (depending on the country), to safe operation
8, the sample inspection chamber of built-in LED lighting system
9, the built-in camera to capture images in real time
10, analysis of lights to ensure full 360 degree visible
11, the built-in X ray system, safe and reliable
12, the compact body design
13, the built-in USB interface for high-speed data download and print
Color display 14, bright, sensitive
Technical parameters:
Analysis of the scope of 1ppm to 99.99%
The measurement precision of RSD is less than or equal to 0.1%
The test form solid, powder, liquid
Tube voltage 5KV - 50KV
0 - 50KV high voltage power supply
Light pipe flow 0 A - 1000 A
Camera HD camera
A new high resolution detector detector
The test time for 5sec - 30sec
Analysis of elements Au, Ag, Pt, Pd, Ni, Cu, Zn, Cd, Pb, W, In, Rh
The whole weight of 5KG
Instrument of environmental requirements
Ambient temperature 15 degrees C degrees C - 30
The relative humidity is 35% - 70%
Power requirements AC 220V + 5V, 50/60HZ, no electromagnetic interference source near the big power and vibration
